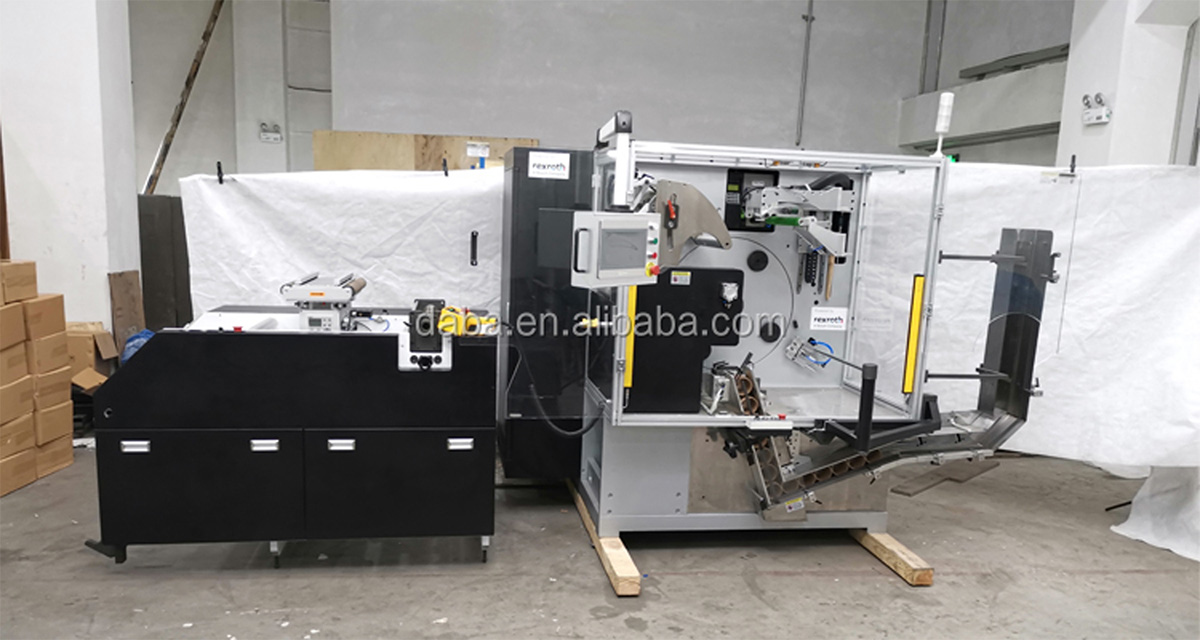

DBDG-4B 330 Non-stop glueless turret rewinder for adhesive labels blank labels

Short Description:

Fully automatic 4 shafts glueless type non-stop rewinder is your bestchoice to improve efficiency, cut the labor force cost, protect theenvironment, and open the market. We all know that for label buyers.glueless products are more convincing than glued products. At the sametime, it removes the cost of glue while protecting the environment....


Product Detail

Product Tags


Feature

Fully automatic 4 spindles glueless type non-stop rewinding machine is your best choice to improve efficiency, protect the environment and open the market. We all know that for label buyers, glueless products are more convincing than glued products. At the same time it removes the cost of glue while protecting the environment.

The model also match separate pneumatic unwinder and slitting unit, can running blank label rolls after die cutting directly,  also can increase rotary die cutting unit on the machine to satisfy customers detail requirement.

Besides we have following features:
1.  Easy-to-use – automatic set up and changeover features, mean that less training is required.
2.  Versatile – runs in-line with most printing presses or converters, or off-line with a standalone unwind/slitting unit.
3.  Flexible – with no glue to consider, timing issues are reduced – you can pause the machine if you need to.
4. Energy saving – since there is no need for a glue heating module.
5. Compact unwind – for off-line operation, a space-saving 1000mm diameter, braked unwind unit is available, with an integral roll lift, electronic web guide, adjustable splice table with clamps and auto-lift scissor slitting unit, complete with five sets of rotary knives.
6. Core loading – enables cores to be positioned automatically and accurately onto the rewind shaft, supplied with a storage tower or automatic bowl feeder for small cores.

Specification

Machine speed:  Max 90m/min when rewinding shaft is 25-38mm
Max 120m/min when rewinding shaft is 50-76mm

Max rewinding diameter350mm
Max width330mm
Min rewinding width40mm
Total power8KW
Power supply3PH+N+PE
Machine dimension1.45X3X1.7m
Machine weight2.0T
Air pressure0.8MPA

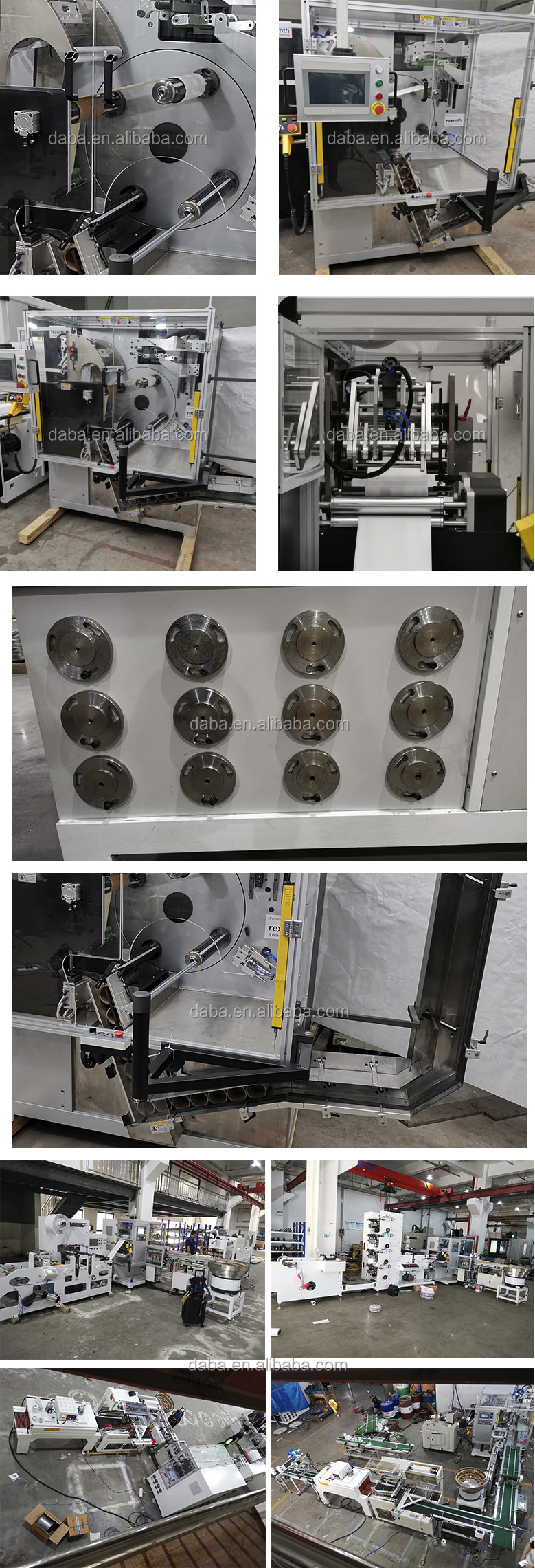

Deatail

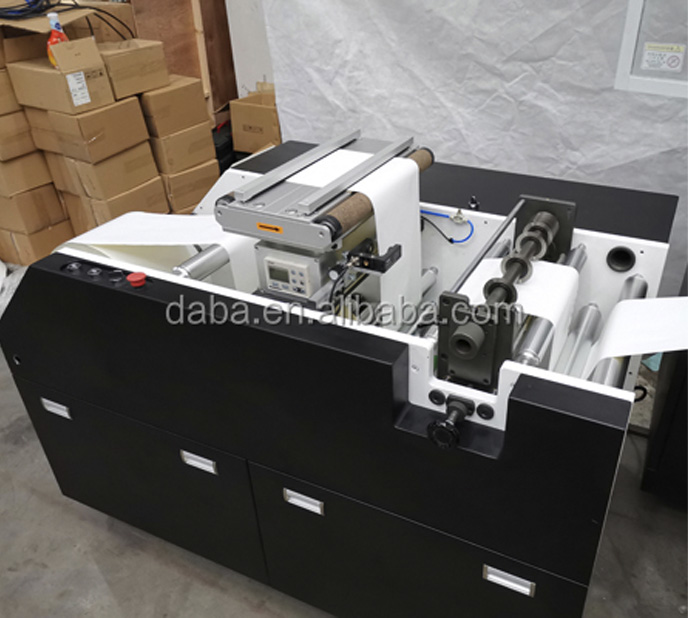

Separate Pneumatic Unwinding Unit

1. Separate pneumatic unwinding unit with max. unwinding dia.: 1000mm;2. One inflatable airshaft: 3inch (standard);

3. One high precision web guide sensor with splice table;

4. One sitting unit on separate unwinding unit with 8pcs circular knives;

5. High quality in black painting for outside wallboard;

6. high quality in white painting for inside wallboard.

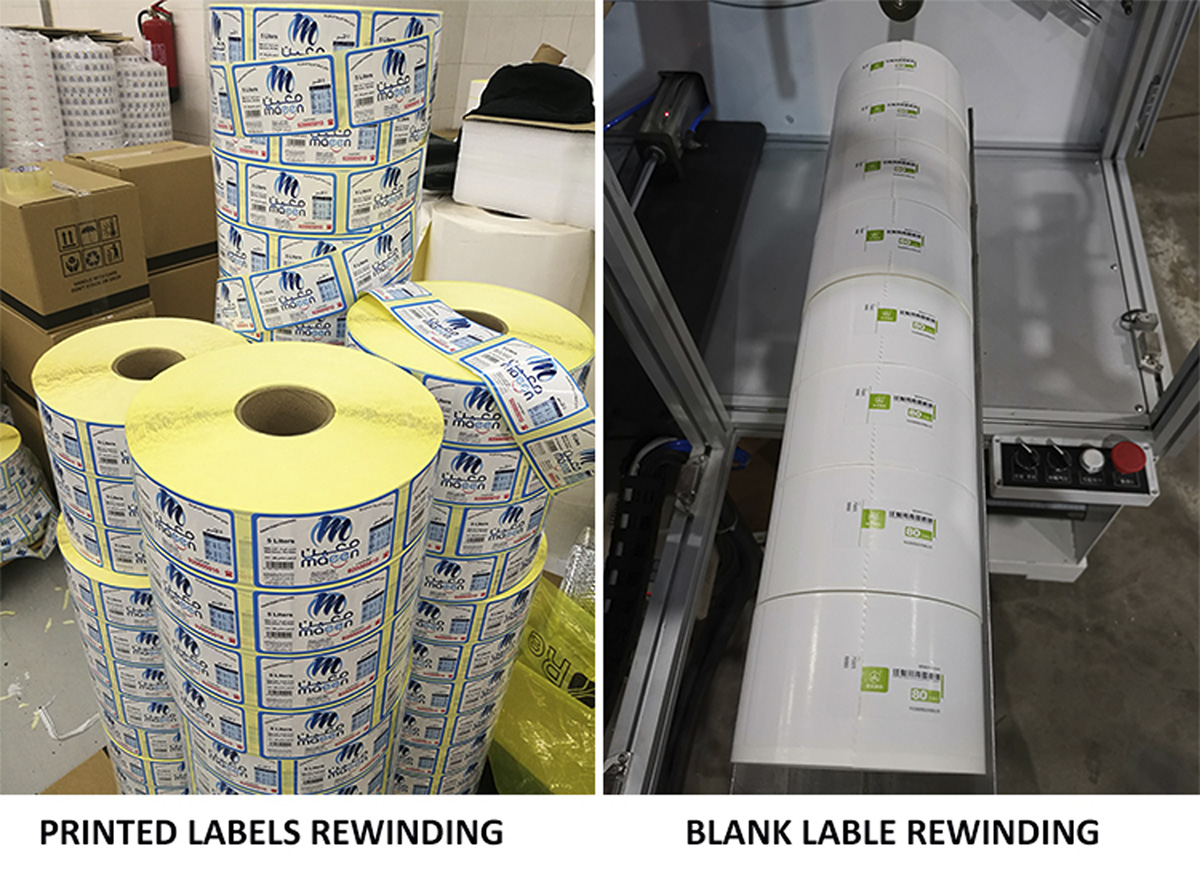

Sample Show
