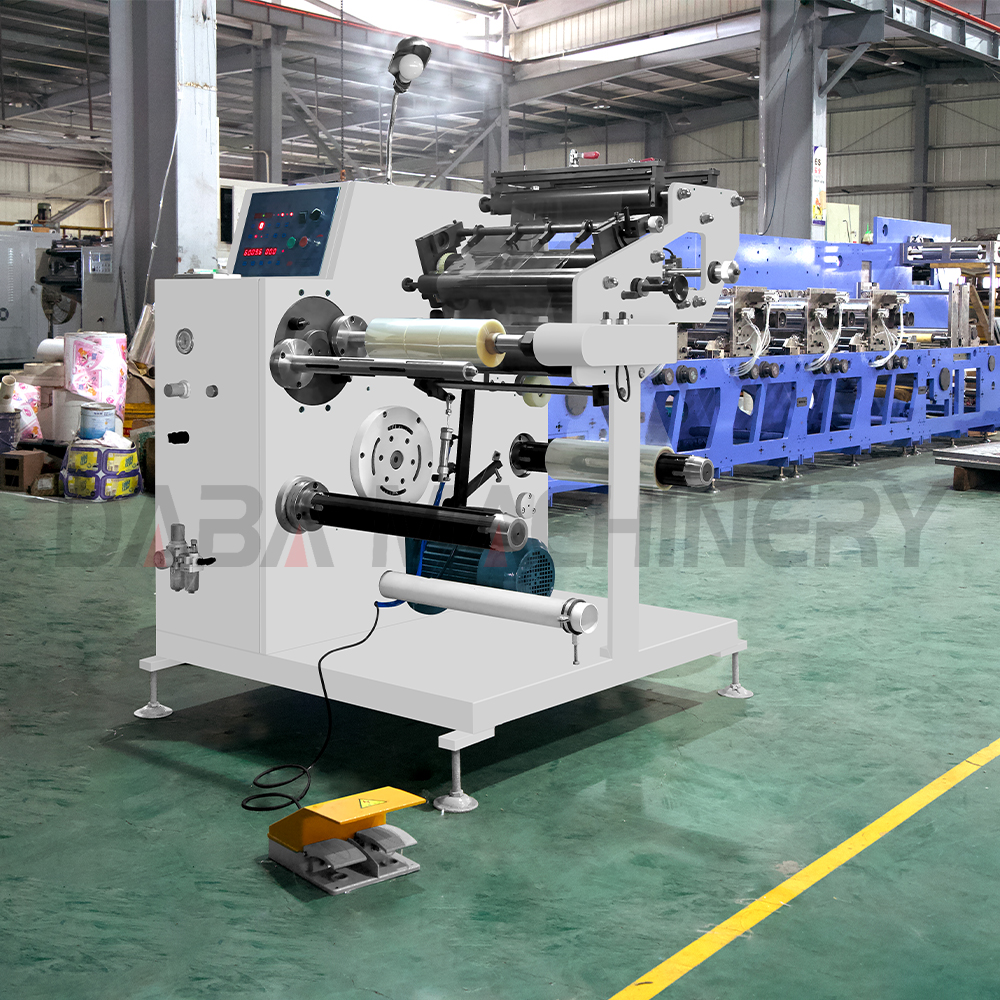

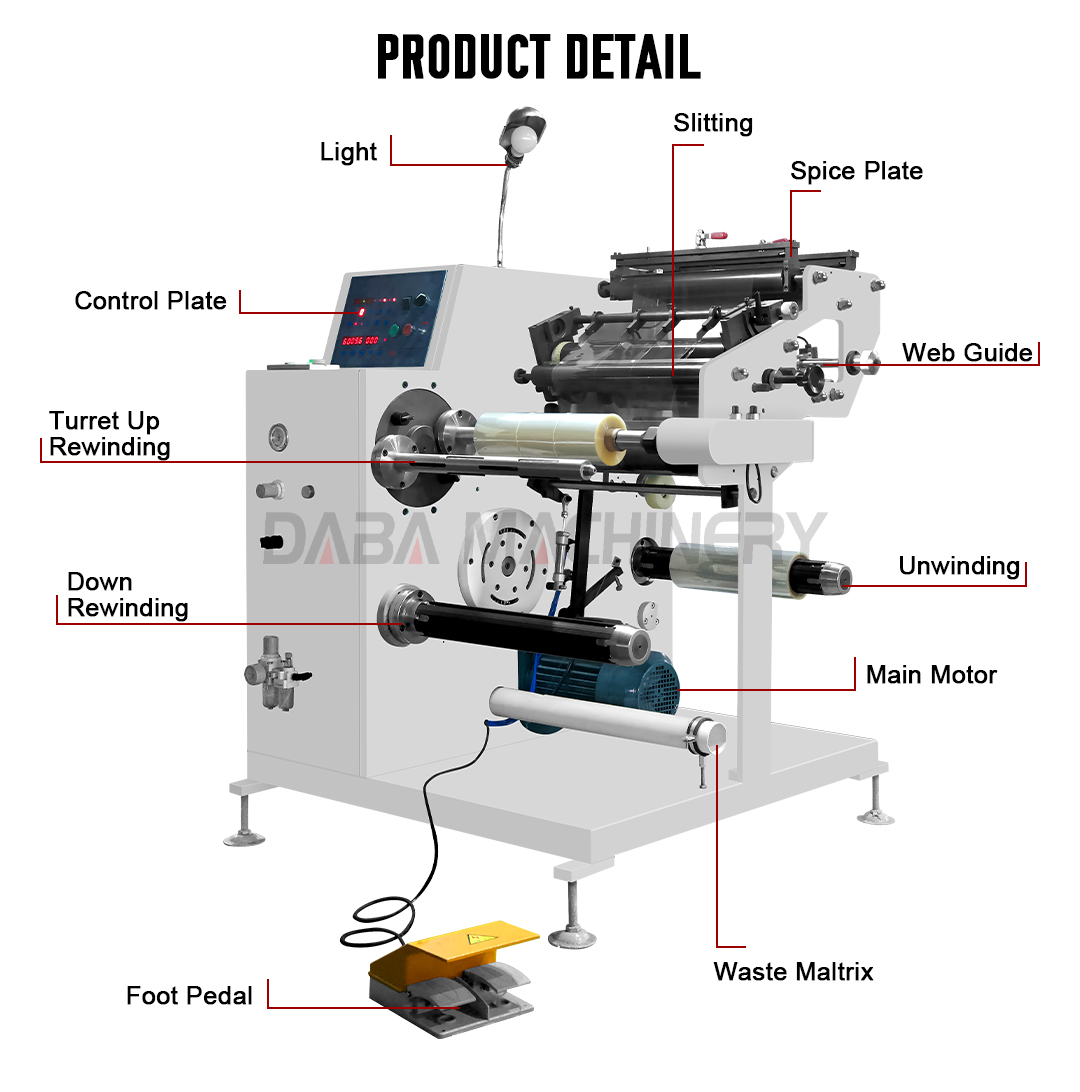

Short Description:

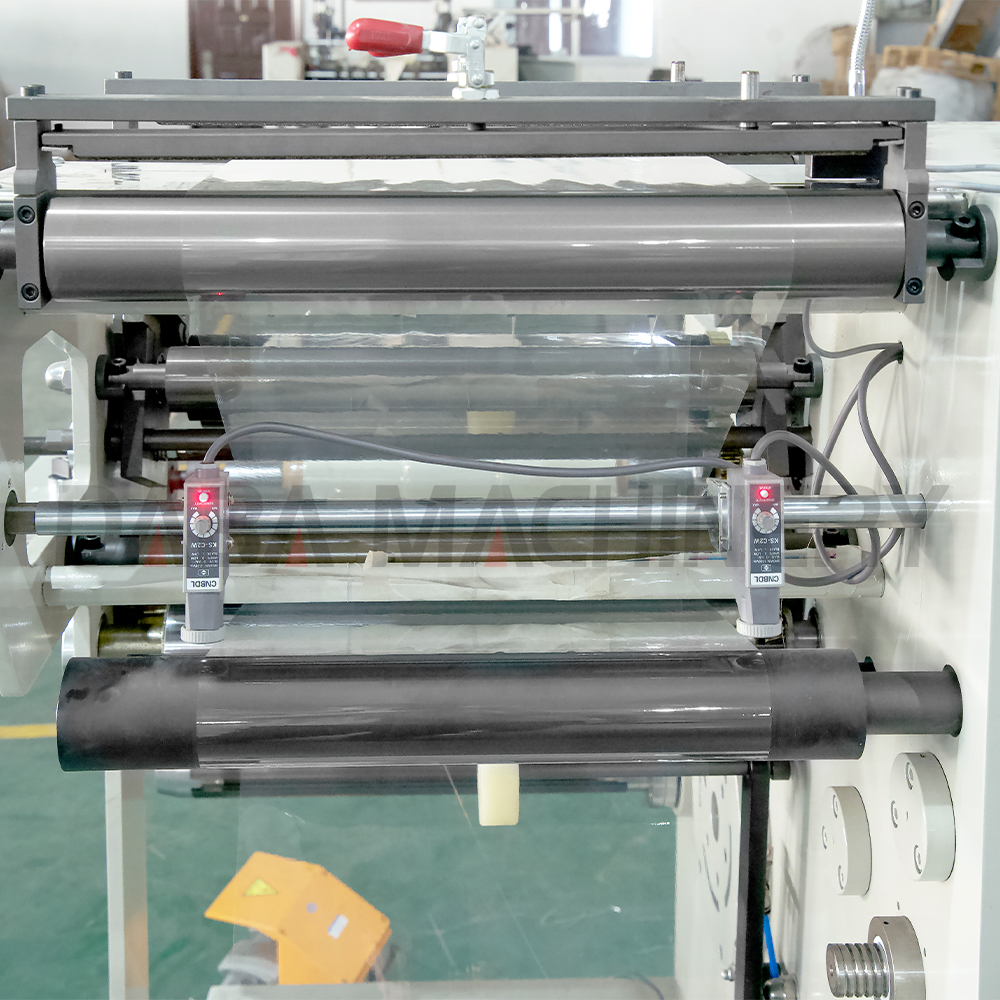

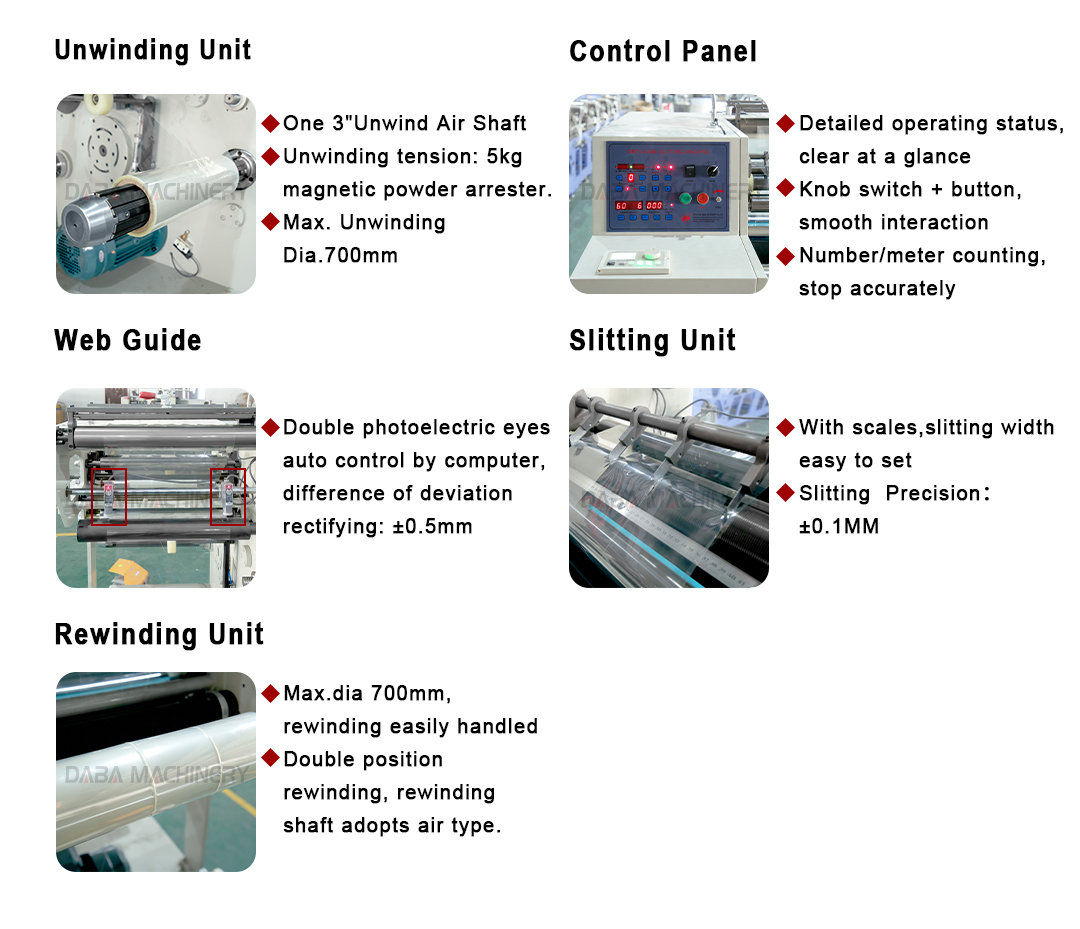

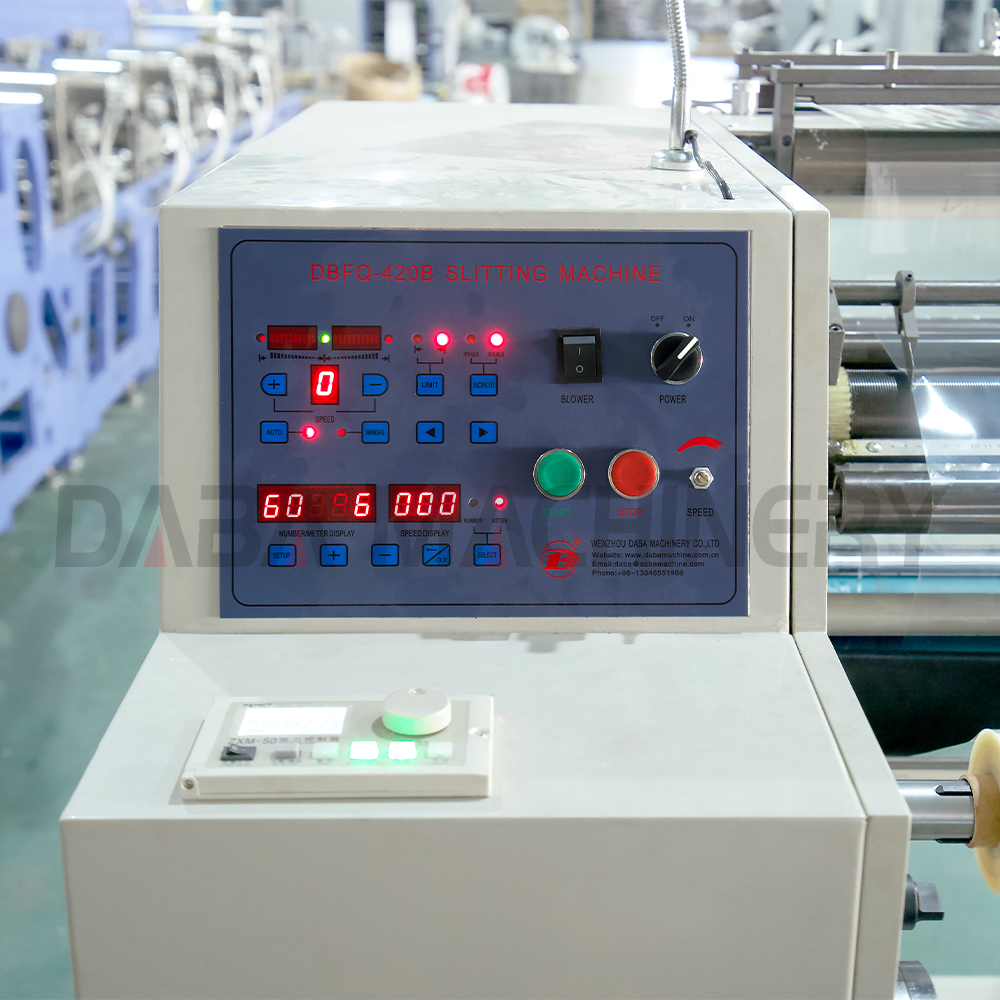

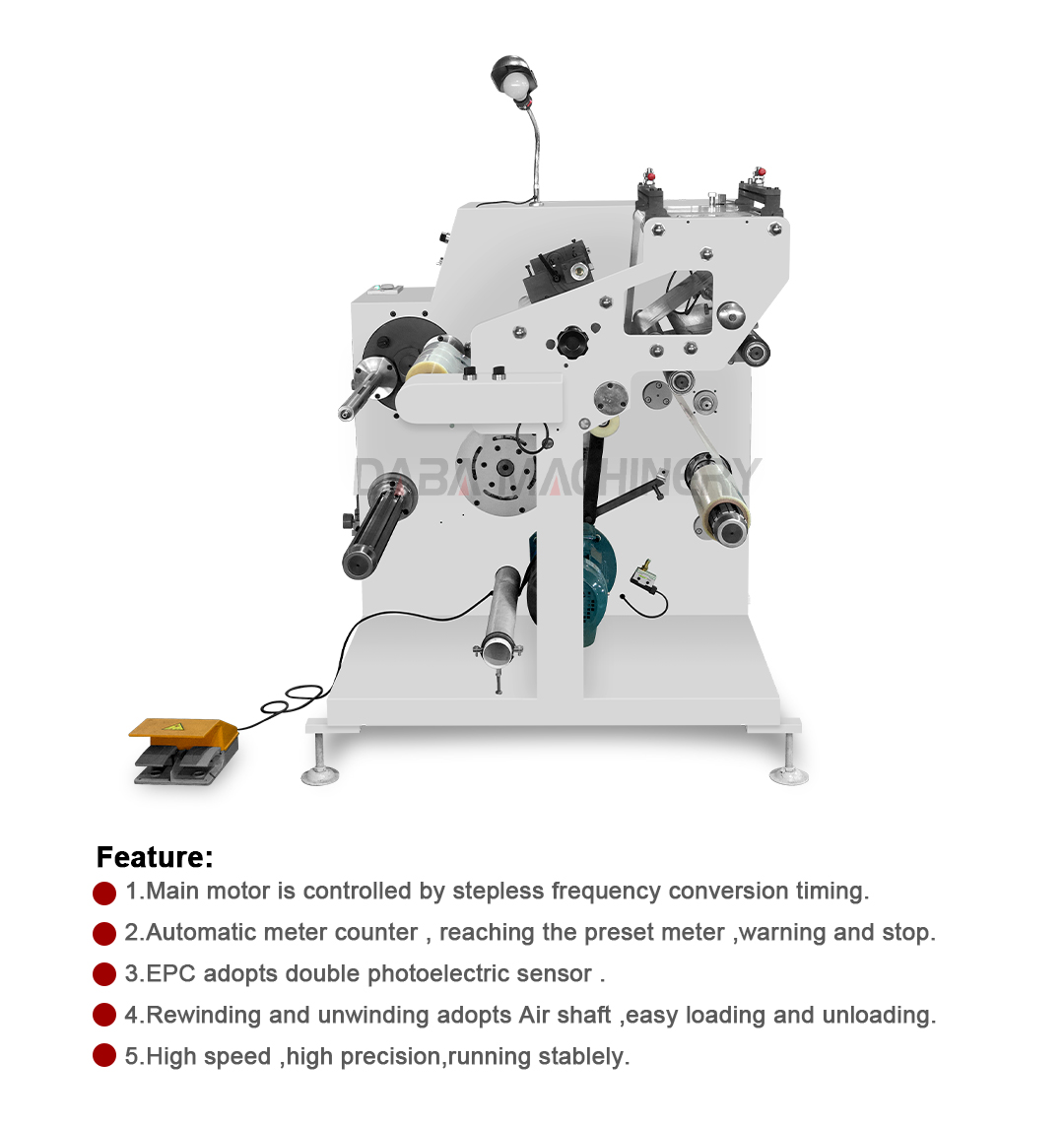

1.Main motor is controlled by stepless frequency conversion timing.2.Automatic meter counter , reaching the preset meter ,warning and stop.3.EPC adopts double photoelectric sensor .4.Rewinding and unwinding adopts Air shaft ,easy loading and unloading.5.High speed ,high precision,running stablely....

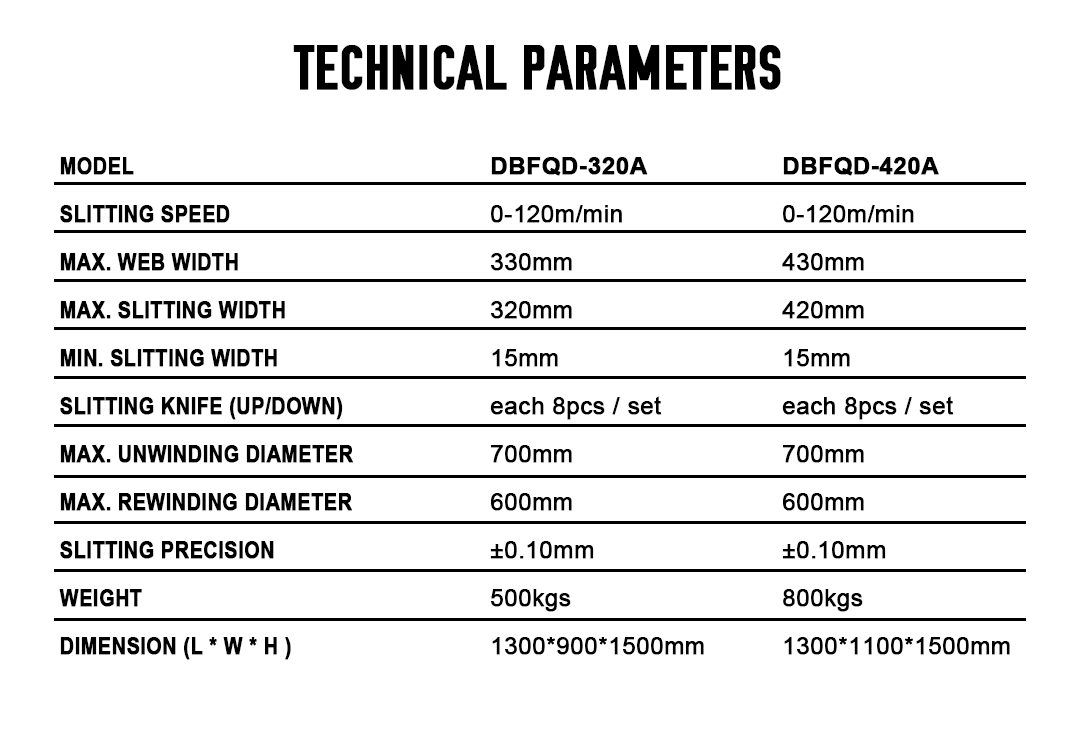

• Slitting Speed: 0-120m/min
• Max. Web Width: 430mm
• Max. Slitting Width: 420mm
• Min. Slitting Width: 15mm

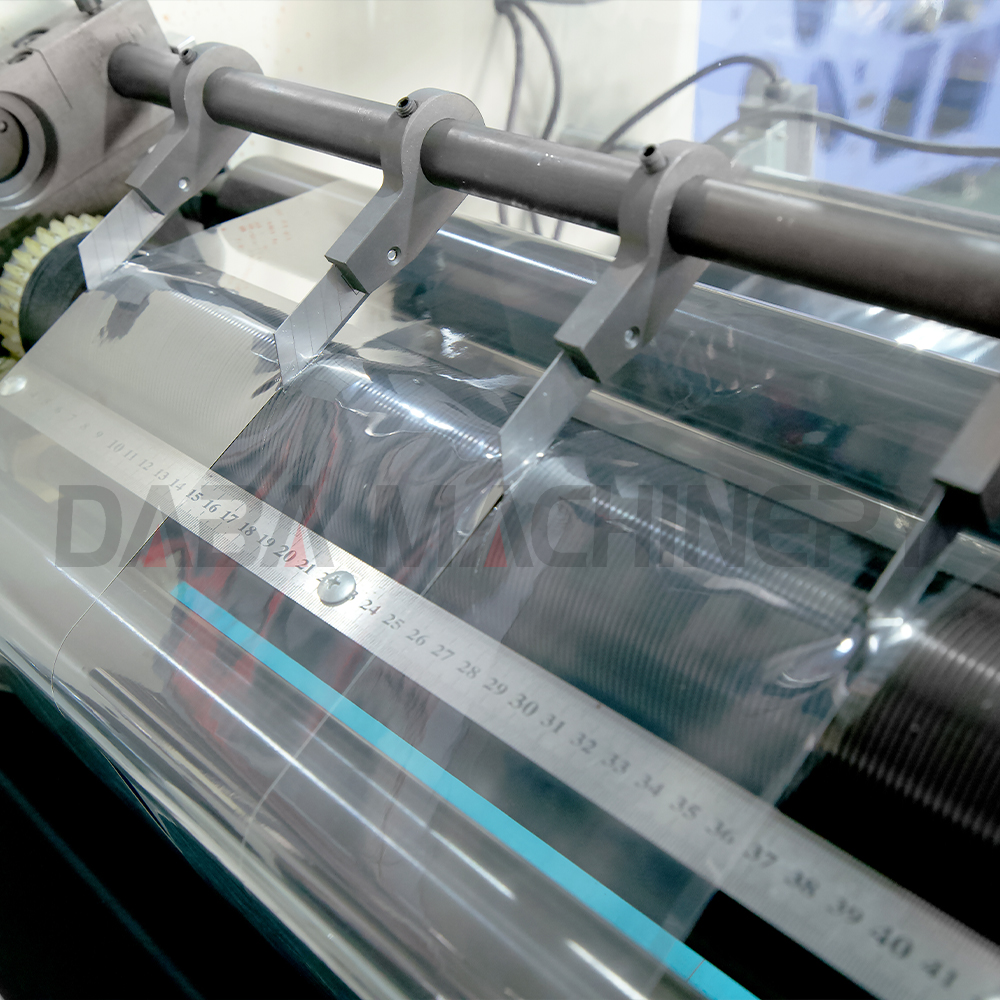

• Slitting Knife (Up/Down): each 8pcs / set
• Max. Unwinding Diameter: 700mm
• Max. Rewinding Diameter: 600mm
• Slitting Precision: ±0.10mm
