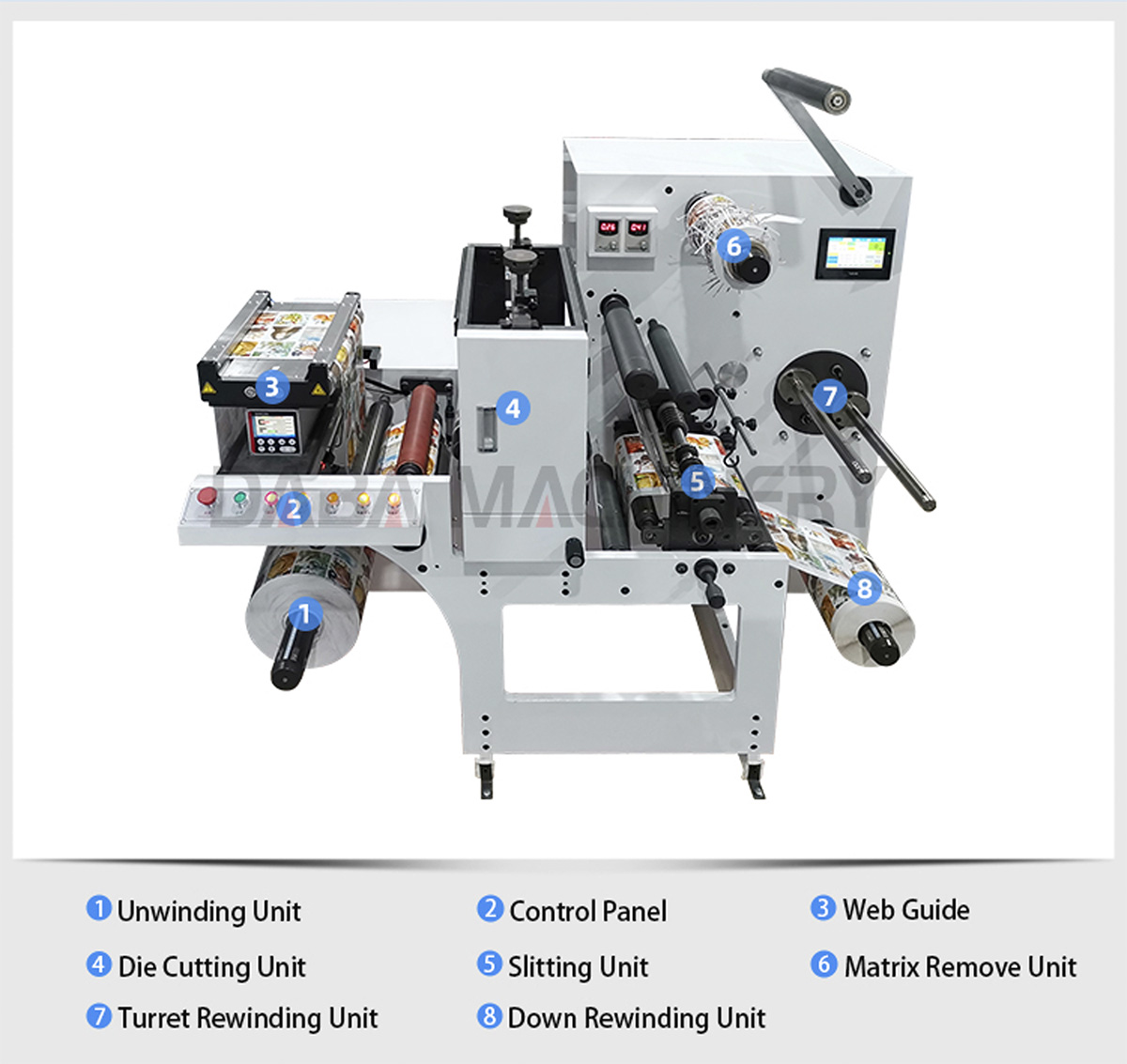

DBMQ-370B High Speed Full Rotary Die Cutting Machine

Short Description:

DBMQ370B is updated from DBMQ320B. We improve the speed of blank label full rotary die cutting to 200 m/min by adpot servo motor driven, so that highly improve the efficiency....


Product Detail

Product Tags

FEATURES

APPLICATION: Blank adhesive paper, BOPP, PET, PVC, etc.

  •     The machine mainly used for narrow web width material slitting;
  •     The machine adopt full servo motor driven system, taper tension control system;
  •     The machine is fully automatic on web guiding, rotary die cutting, slitting width adjustment and turret rewinding;
  •     Waste discharged by suction system. International brand of counting by meters and pieces;
  •     Up rewinding adopt self-turret type to improve the working precision;
  •     Easy to exchange the up rewinder airshaft with different size by flange structure.


APPLICATION



DBMQ370-B is updated from DBMQ320B. We improve the speed of blank label full rotary die cutting to 200 m/min by adpot servo motor driven, so that highly improve the efficiency.

Application:

Blank adhesive paper, BOPP, PET, PVC, etc.

Optional:

  1. Inspectional System; 2. Inject Printer Plate; 3.Razor Blades; 4. CCD Web

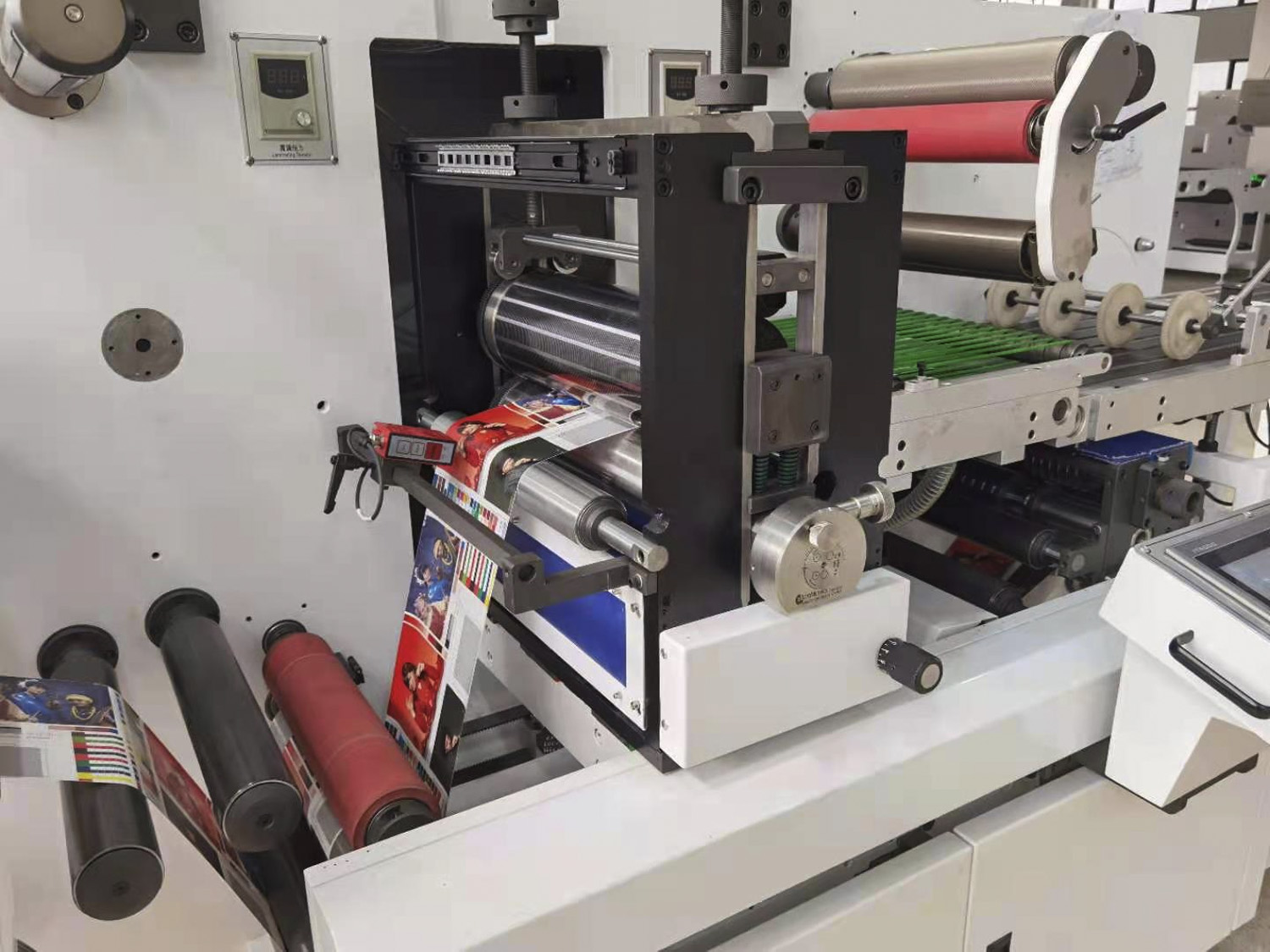

Die Cutting Unit / Detail Show


Full Rotary Die Cutting Unit Including:

– Magnetic Cylinder

– Dies

– Guiding Roller

– Waste Matrix Device

Note: the magnetic cylinder and dies are excluding the quotation

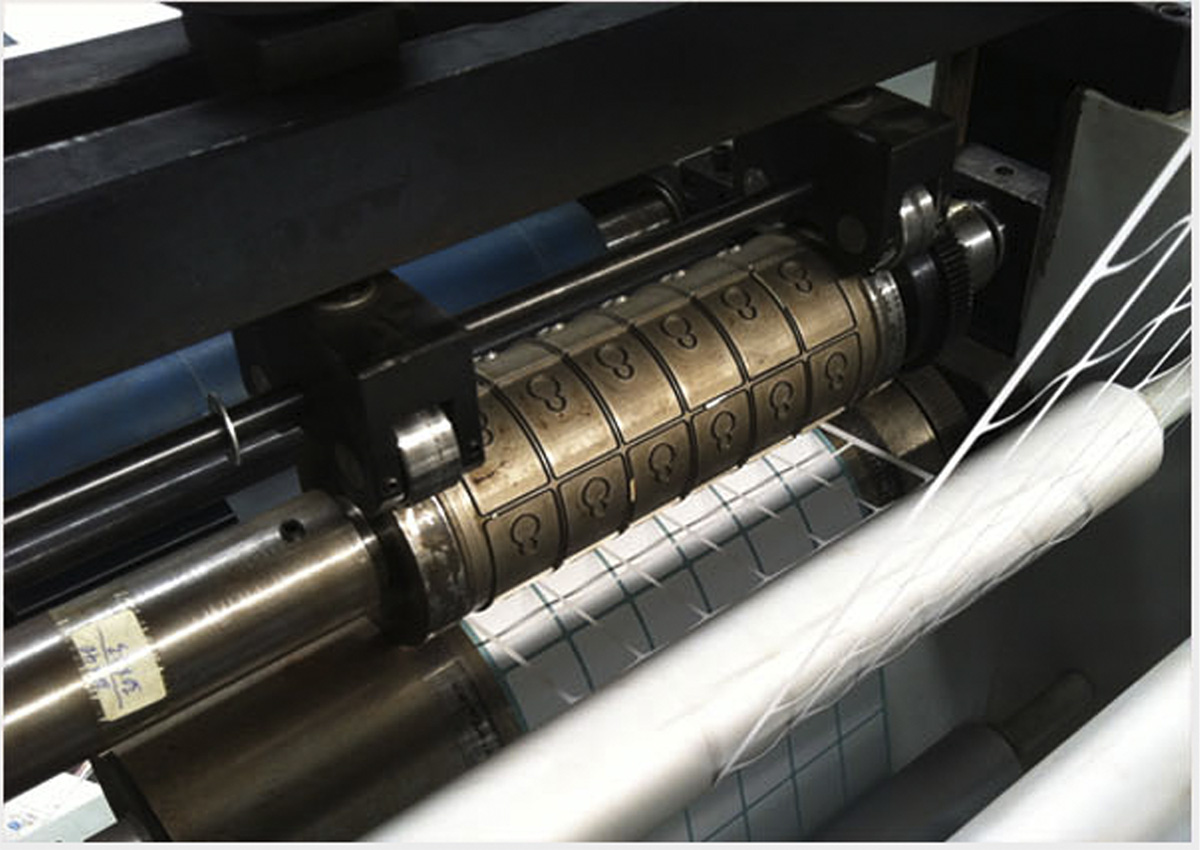

Magnetic Cylinder and Dies

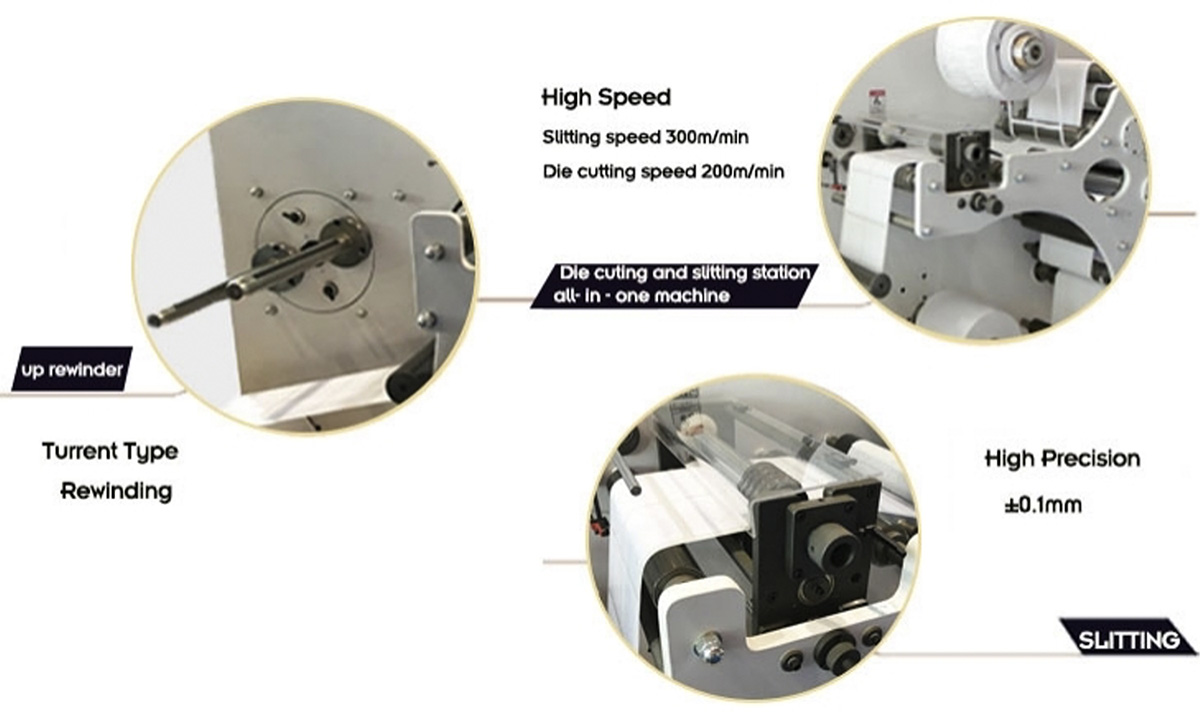

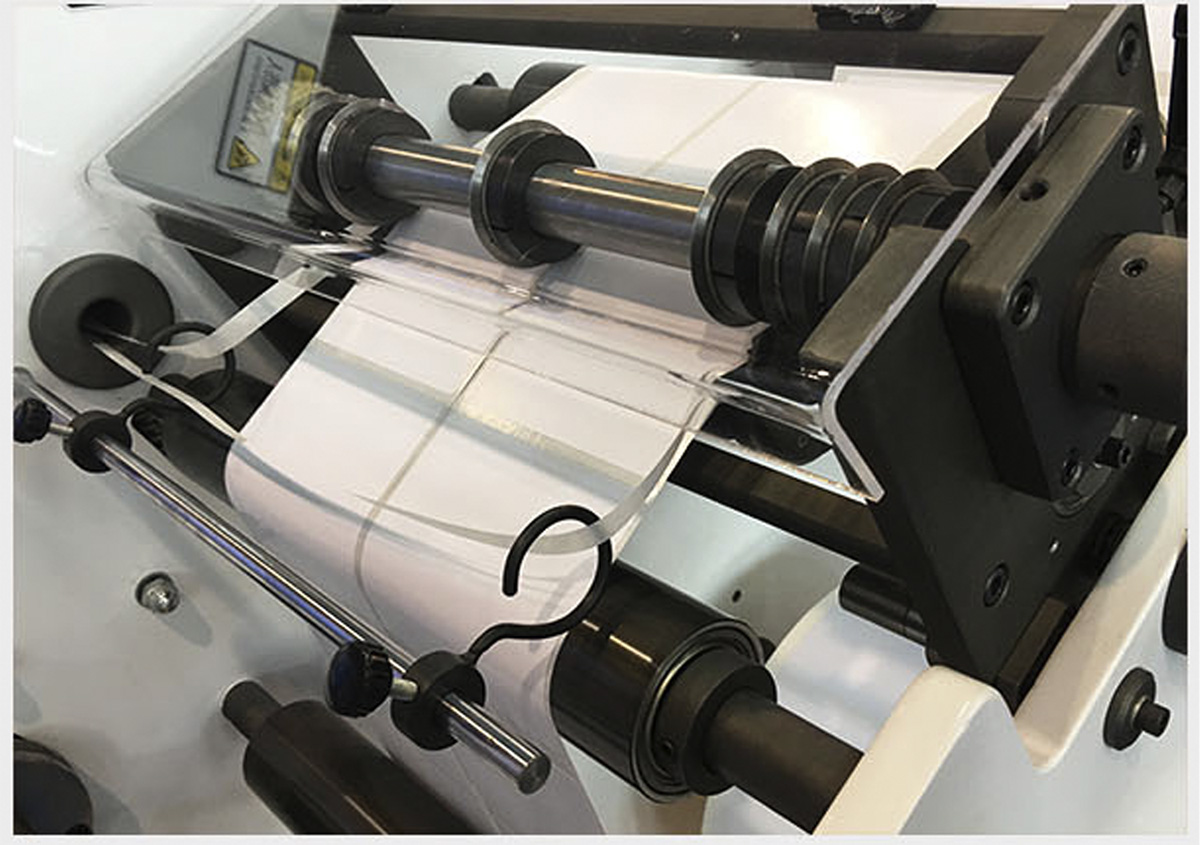

Slitting Unit/Detail Show:


Standard Slitter:

 – Circular knife

 – 6 sets / machine

 – 20mm thickness (min. Slitting width)

  Optional Slitter:

 – Razor blade (for film material)

Romometics Brand Adjustable Anvil Roller (optional)
